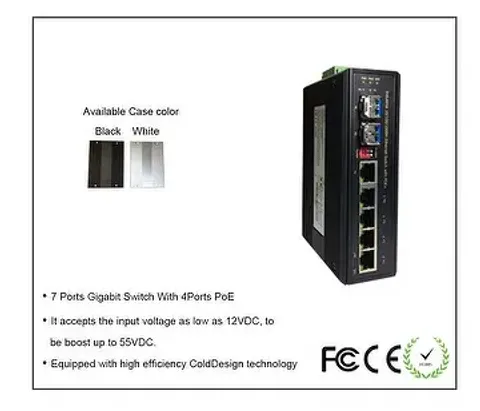

• 7 Ports Gigabit Switch With 4Ports PoE
• It accepts the input voltage as low as 12VDC, to be boost up to 55VDC
• Operating Temperature -40℃~75℃ fully tested.
• Equipped with high efficiency ColdDesign technology capability
This Super Voltage Booster --- The high power 4 port industrial POE+ Injector is equipped with our high efficiency ColdDesign technology which allows low input voltage, such as 12/24/48VDC be boost up to 55VDC to meet IEEE802.3at requirement. The ColdDesign technology will not only boost up Input Voltage, also reduce the excessive heat problem to a minimum. It accepts the input voltage as low as 12VDC, to be boost up to 55VDC. And it is also equipped with 2 port SFP fiber that can be used as fiber redundancy, cascaded to your other devices to expand your network application. It is being rigorously tested for your Security, Transportation and Telco application.
Technical Specifications
| Ports | 7 Ports Gigabit Switch With 4Ports PoE |
| Standard Compliance | IEEE 802.3 10Base-T Ethernet |
| Switch Architecture | Back-plane (Switching Fabric): 12Gbps |
| Data Processing | Store and Forward |
| Flow Control | IEEE 802.3x Flow Control and Back Pressure |
| Jumbo Frame | 9KB |
| MAC address Table Size | 1K |
| Packet Buffer Size | 1M |
| Network Connector | 5xRJ-45 10/100/1000BaseT(X) auto negotiation, 4 Giga POE+ 802.3at/af PSE port Auto MDI/MDI-X function, Full/Half duplex 2x SFP 100/1000M BaseTX |
| Network Cable | UTP/STP above Cat.5e Cable EIA/TIA-568 100-ohm (100m) Fiber Cable (Multi-mode):50/125um,62.5/125um Fiber Cable (Single-mode): 9/125um |
| Protocol | CSMA/CD |
| LED | PW1(Power 1) Green, PW2(Power 2) Green, ERR( Fault ) Amber, |
| TX/RJ-45 port: LNK (Link/Active) Green, SPD(Speed) 10/100(OFF ) ,1000 (Green) | |
| SFP Fiber Per port: Link (Green) Active Flash | |
| DIP Switch | DIP 1: OFF: Port 5 SFP (DEFAULT) ON: Port 5 TX DIP 2: OFF: SFP 1000M (DEFAULT) ON: SFP 100M |
| Reserve polarity protection | Present |
| Overload current protection | Present |
| Power Supply | Redundant Dual DC 12V-55V Power Input |
| Power Consumption | 5.76W@12/24/48 VDC full load, Without POE |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1 A @24VDC, Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected |
| POE power | POE power per port 30watts. Maximum 36Watts per port at 12/24/48VDC input Maximum total power 126Watts at 24VDC and 48VDC power input. At 75°C ---- Maximum total power 80W at 12VDC power input . At 70°C --- Maximum total power 85W at 12VDC power input |
| Removable Terminal Block | Provide 2 Redundant power , Alarm relay contact ,6 PinWire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG):12-24/14-22 Stranded wire(AWG): 12-24/14-22 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm |
| Operating Temperature | -40℃~75℃ fully tested. |
| POE efficiency | Voltage boost efficiency up to 97% from 12VDC to 55VDC. |
| Surface temperature | Surface temperature rises 6°C full load in a 75°C chamber |
| Operating Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -40℃~85℃ |
| MTBF | 5,510,304 hrs ( MIL-HDBK-217F) at 25°C |
| Housing | Rugged Metal ,IP30 Protection |
| Case Dimension | 142mmx43mmx105mm (LxWxD) |
| Installation mounting | DIN Rail mounting, wall mounting) |
| EMC/EMS | CE, FCC VCCI |
| EMI | FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
Ordering Information
| DV642GF | Super Voltage Booster, 12/24/48 VDC In, 4 port Giga POE+ Injector, with 4xGiga POE TX + 2x Gigabit SFP |
| DV642GTF | Super Voltage Booster, 12/24/48 VDC In, 4 port Giga POE+ Injector, with 4xGiga POE TX + Gigabit TX + SFP |
